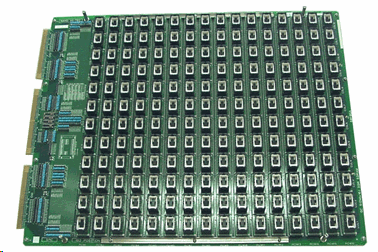

JEC SYSTEM BIB

- SYSTEM : JEC / PROFIT-1300 SERIES

- DEMENSION : 290mm(W) * 630mm(D)

- TARGET DEVICE : MEMORY(DRAM, SRAM)

- BOARD : POLYMIDE / 6~14LAYER / 2~3.2t

- CHANNEL ASSIGN : ADDR : A0 ~A31 (32EA) CLK:CLK0~CLK7(8EA)31(32EA)

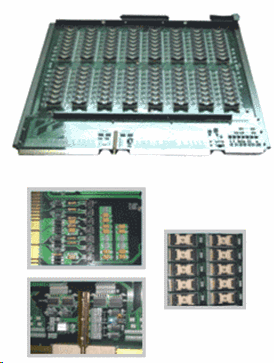

JEC SYSTEM BIB

- SYSTEM : JEC / PROFIT-1700 SERIES

- DEMENSION : 590mm(W) * 732mm(D)

- TARGET DEVICE : MEMORY(DRAM, SRAM)

- BOARD : POLYMIDE / 6~14LAYER / 2~3.2t

- ASSIGN : ADDR : A0 ~A31 , A0B ~

CLK : CLK0~CLK7, CLK0B ~ CLK7B

SCAN : SCAN0~SCAN31(32EA)

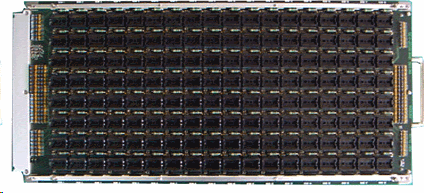

ABES SYSTEM BIB

- SYSTEM : MCC ABES-IID,IVD,VD

- DEMENSION : 570mm(W) * 570mm(D)

- TARGET DEVICE : MEMORY & LOGIC

- MAIN BOARD : POLYMIDE / 6LAYER / 1.6t

- PGM&SCM&DUT BOARD : POLYMIDE /4~8LAYER/1.6~2.0t

- CHANNEL ASSIGN : I/O 240 channel, Monitoring 16 channel

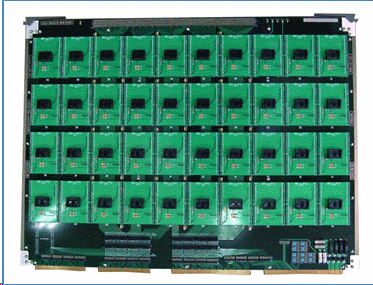

AHER SYSTEM BIB

- SYSTEM : ATX

- DEMENSION : 508mm(D)X 673mm(W)

- TARGET DEVICE : MEMORY & LOGIC

- MAIN BOARD : POLYMIDE / 6LAYER / 1.6t

- PGM& SCM & DUT BOARD : POLYMIDE / 2~10LAYER / 1.6~2.0t

- CHANNEL ASSIGN : 256ch(0~127->Sensing 128~155->Forsing)
